SKU: NWY-VFR1000

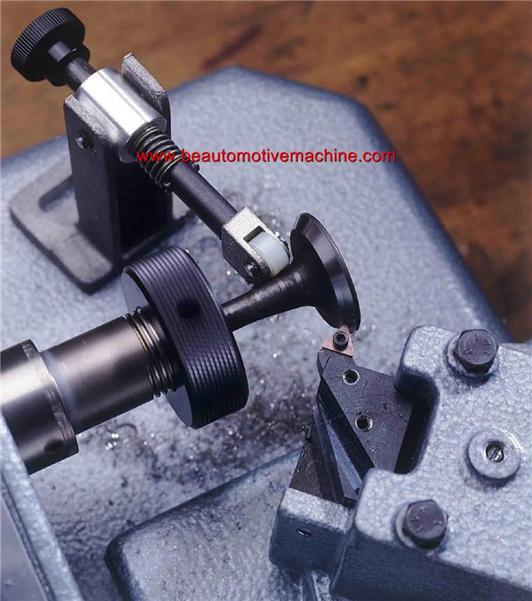

A Flawless Performance... The VFR-1000 Motorized Valve Face Reconditioner by Neway gives you precise valve face angle with less time, effort, and expense. The VFR-1000 machines the valve face in flawless concentric patterns, providing the proper surface texture for a complete valve seal. Machining resurfaces valves with factory precision for just pennies a valve. As a major manufacturer of cylinder head reconditioning equipment, Neway introduces the VFR-1000 as a faster, more accurate alternative to the "same old grind."
VFR-1000 MOTORIZED VALVE RECONDITIONER The Neway method incorporates tungsten carbide machining that virtually eliminates the high and low spots normal to surface grinding. Machining provides a concentric pattern on the valve face—the best texture for proper seating.
SPECIFICATIONS Accuracy: Concentricity within OEM specs Valve Size Range: 1/2" to 21/2"
Collet Size: .157" (4mm) through 1/2" (13mm) Voltage: 115 volt-60 cycle or 230 volt-50 cycle for Europe Spindle Speed: Variable, up to 1200 RPM Cutting Tool Feed: Variable Cutting Tool: Carbide Space Required: 141/4" wide x 111/2" deep Shipping Weight: 70 lbs.
STANDARD EQUIPMENT 1 Collet 3/8" (9mm) 4 Carbide Tool Bits (12 cutting edges) High Intensity Work Light Positive Stops 0°, 30°, 45° 1 Finishing Disc for butting valves (fits 3/8" collet) Illustrated Operator's Manual Instructional Video, DVD or VHS One Year Warranty
OPTIONAL COLLET SIZES REPLACEMENT PART NO. DESCRIPTION PART NO. DESCRIPTION PART NO. DESCRIPTION VFRC40 4.0 mm VFRC1132 11/32 VFR Disc Standing Disc (4/pkg) VFRC50 5.0 mm VFRC90 9.0 mm VFR72 Carbide Insert VFRC55 5.5 mm 7/32 VFRC95 9.5 mm 3/8 VFR74 Carbide (titanium/stainless) VFRC60 6.0 mm VFRC100 10.0 mm VFR75 Carbide (diesel/very hard valves) VFRC65 6.5 mm 1/4 VFRC105 10.5 mm 13/32 VFRC Fuse 4 AMP Fuse VFRC66 6.6 mm VFRC110 11.0 mm 7/16 VFR Bulb 25W R14 Bulb VFRC70 7.0 mm VFRC115 11.5 mm VFRC932 9/32 VFRC120 12.0 mm VFRC80 8.0 mm 5/16 VFRC125 12.5 mm VFRC85 8.5 mm VFRC12 1/2
|
|||||||
